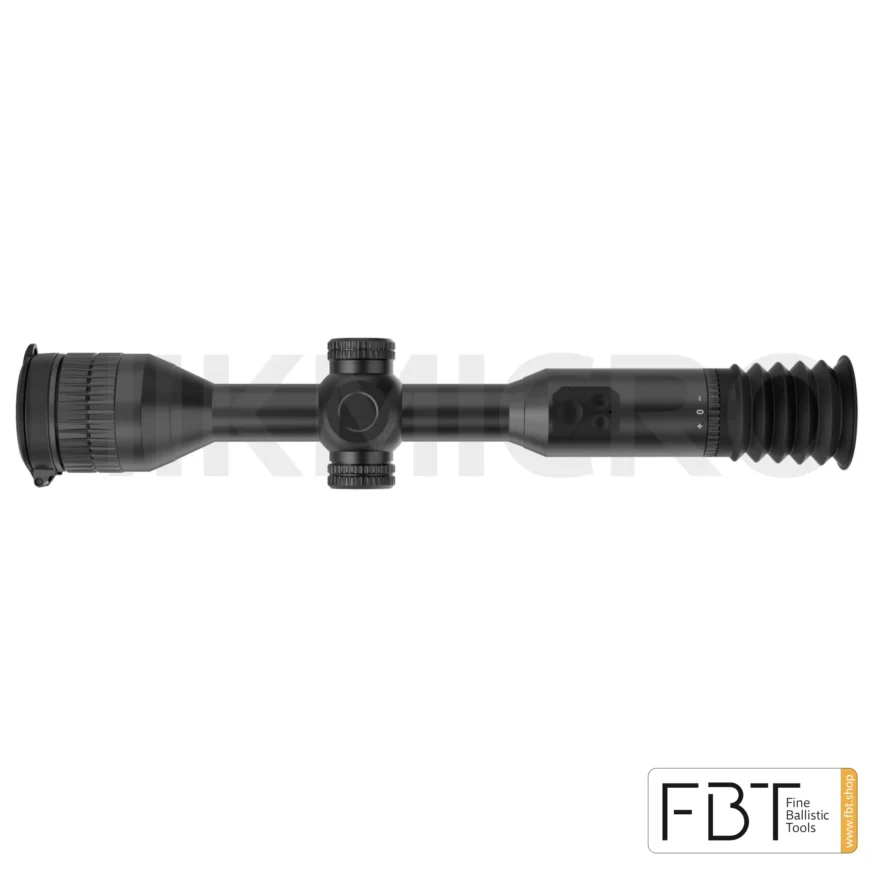

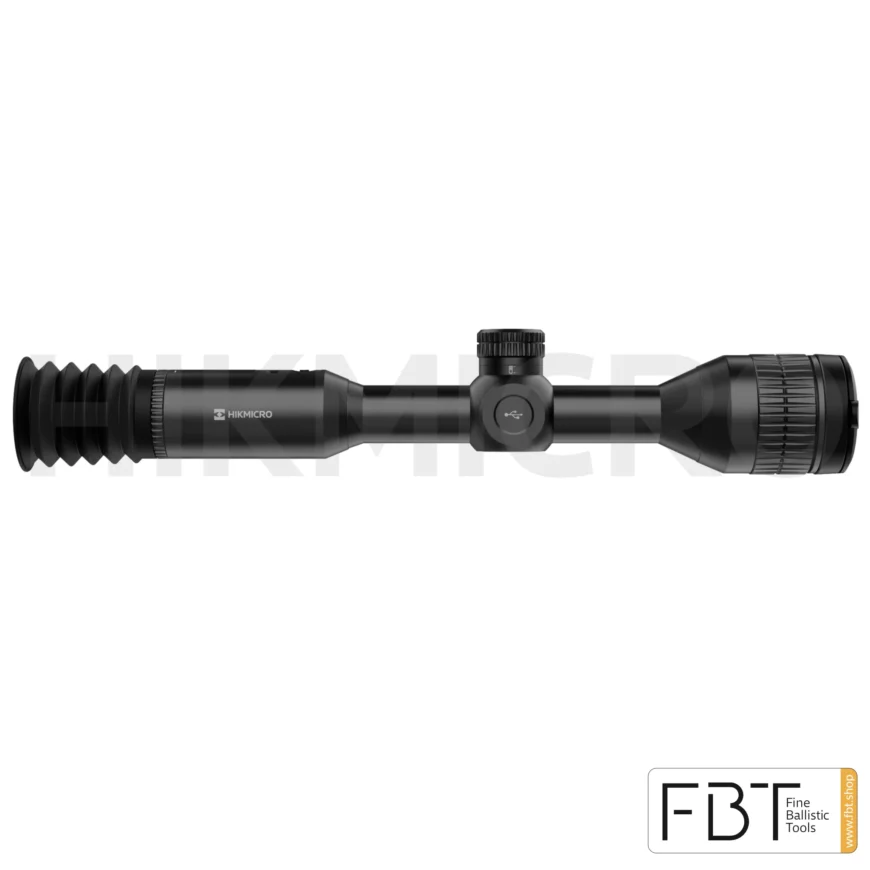

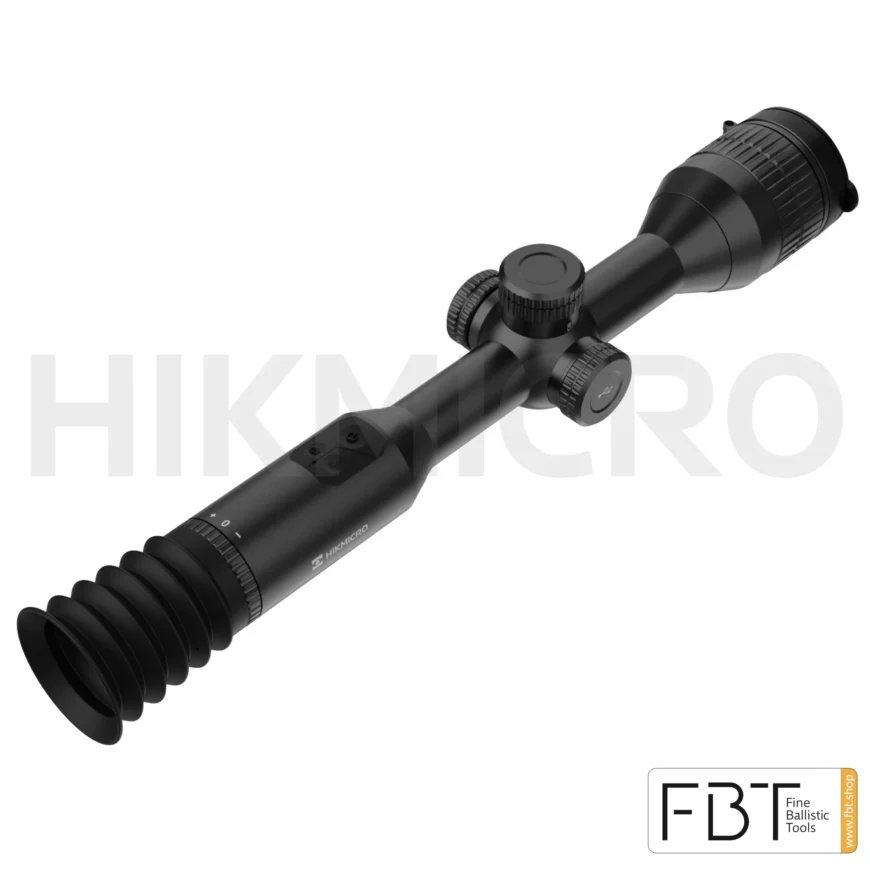

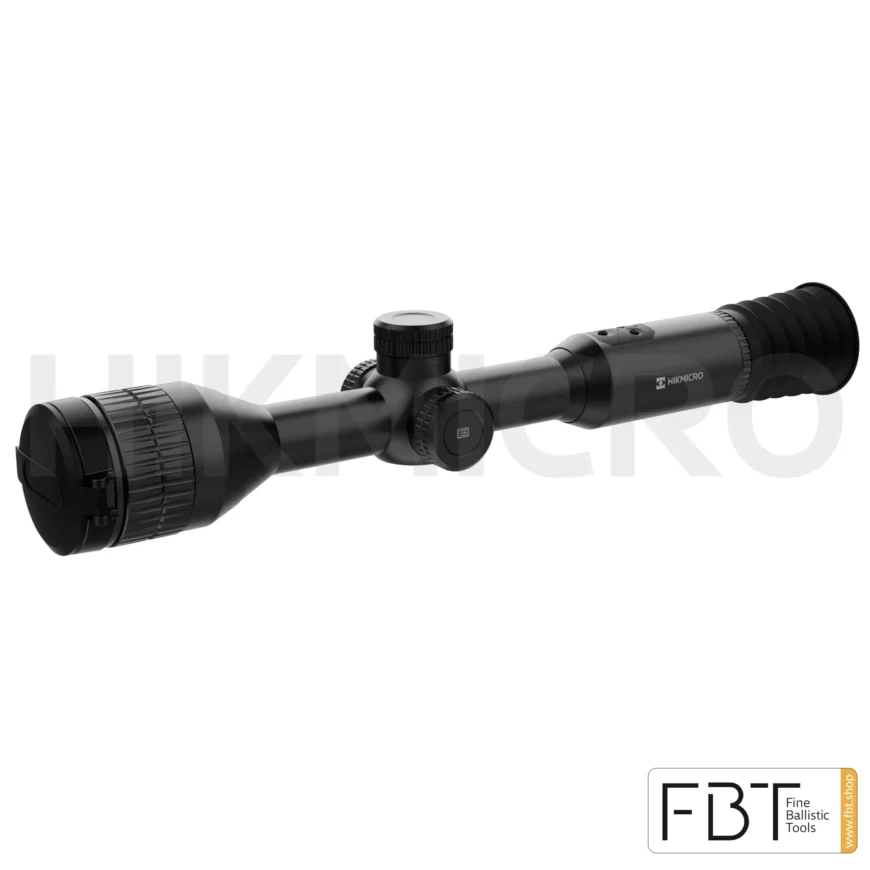

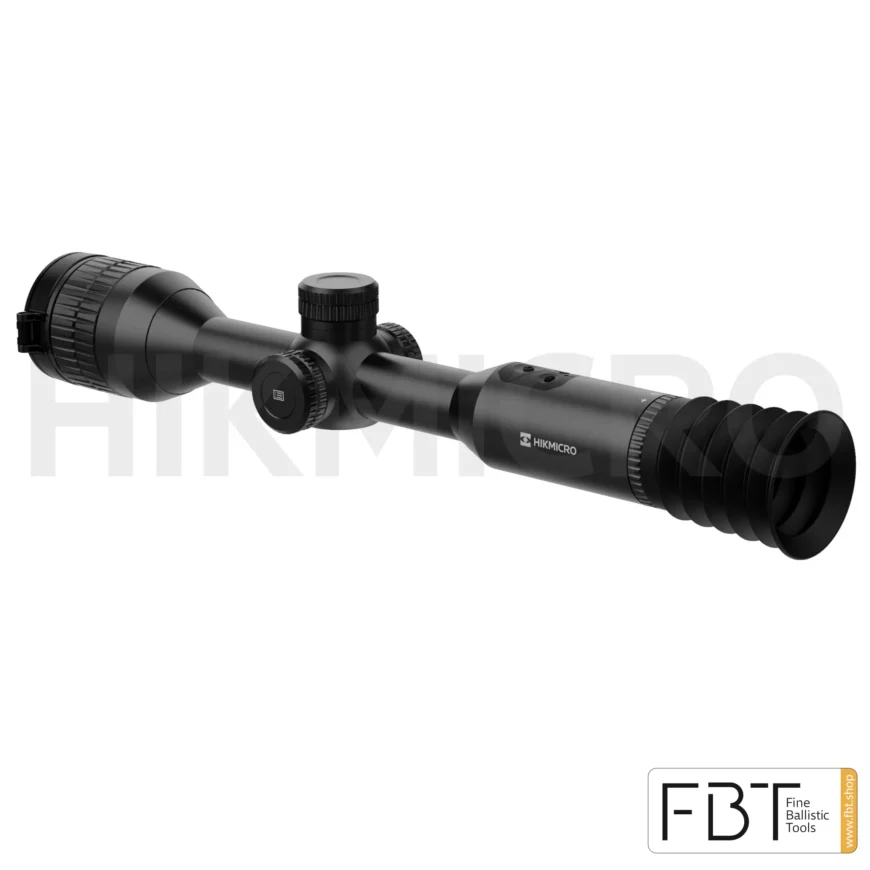

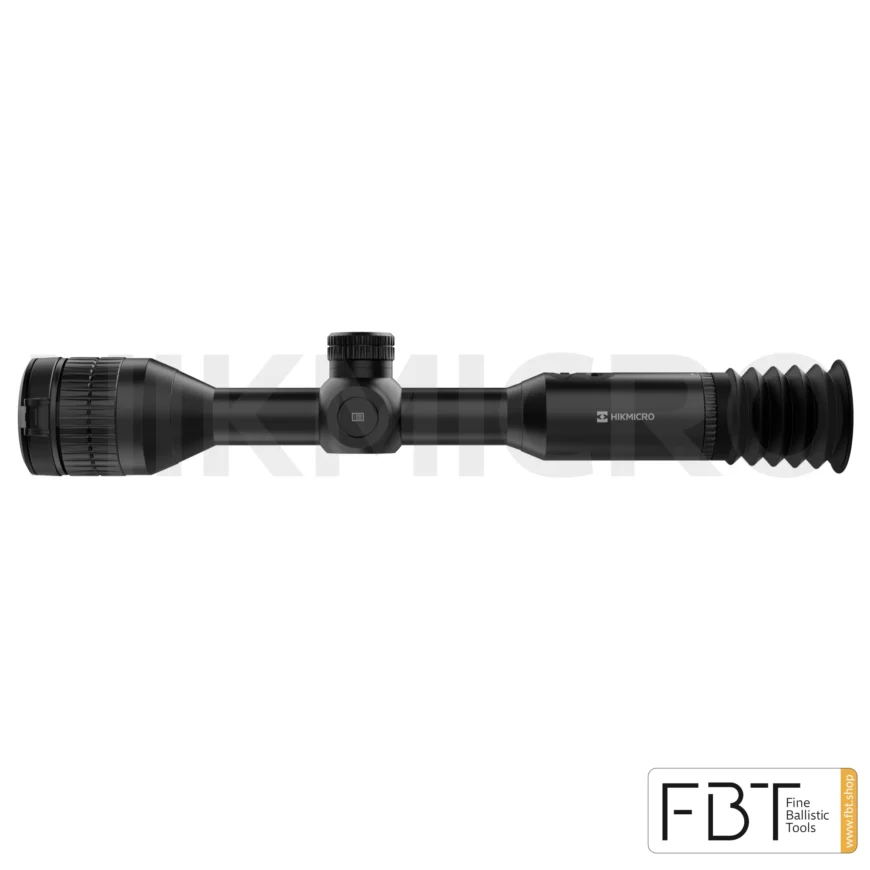

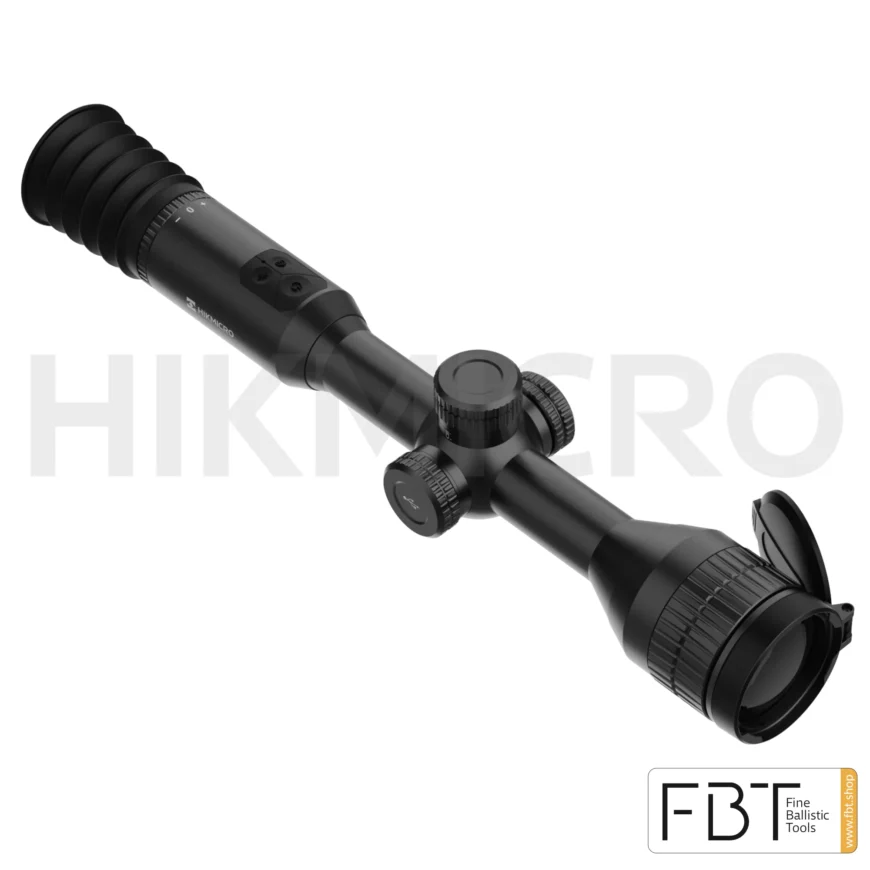

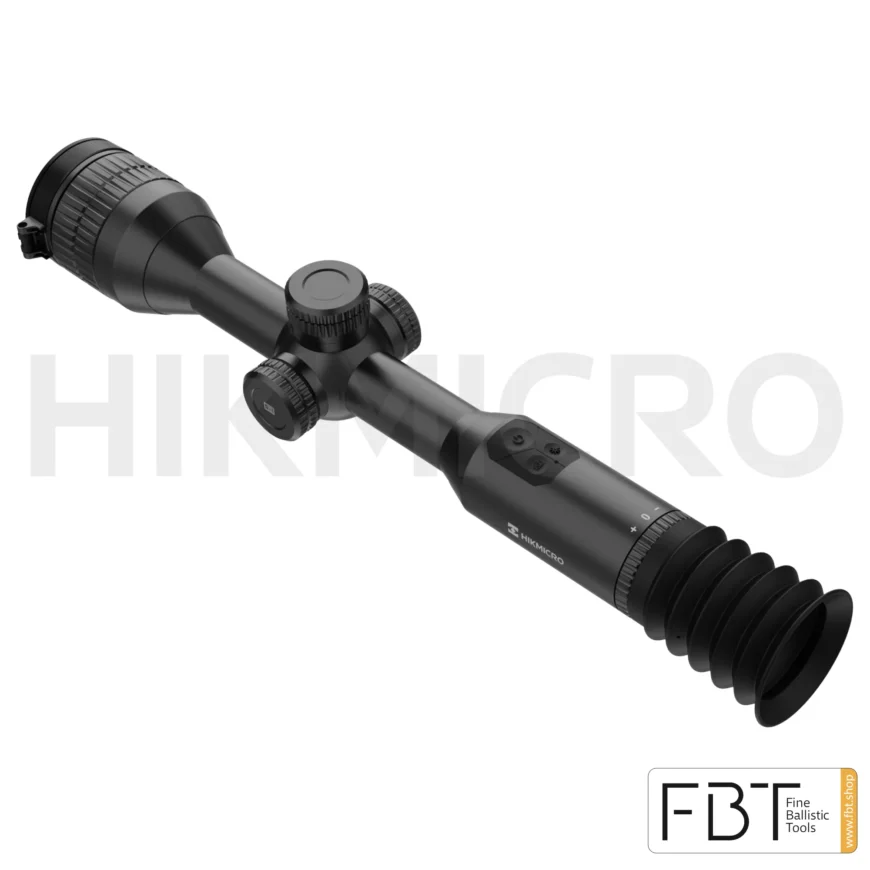

HIKMICRO STELLAR SQ50 | Thermal imaging riflescope

WÄRMEBILD ZIELFERNROHR | HIKMICRO STELLAR SQ50

Welcome to the age of with state-of-the-art sensors coupled digital intelligence. Yes, that's right, we now live in a world in which high-end aids have become indispensable. You could perhaps also say that we live in two worlds. In a real and a virtual reality.

The HIKMICRO STELLAR SQ50 Wärmebildzielfernrohr has a 640×512 px 12-Mikron Wärmebildsensor (heat detector) as a recording source.

This offers an amazing detection range of up to 2600 metres with an advanced performance of under 35 mk NETD sensitivity (heat sensitivity of the sensor - the smaller, the better).

Thanks to high-quality 50 mm lens system This makes the 2.31x basic magnification up to 18x digital & variable magnification possible.

Noch höher auflösend ist die 1024×768 OLED Display Ausgabeoberfläche, die ein superklares Bild auch unter rauen Umgebungsbedingungen wie Dunkelheit, Nebel, Rauch, Staub, Regen, Schnee, Holz, etc, Tarnungen, etc. bietet.

Die hohe Bildwiederholfrequenz von 50 Bildern pro Sekunde liefert dabei stets nicht wahrnehmbare (quasi pixelfreie) und flimmerfreie Bilder.

Mit dem Wärmebild Zielfernrohr Stellar SQ50 können Sie sich in jeder Situation 100%ig verlassen. Dieses WB Zielfernrohr ist der perfekte Begleiter für alle jagdlichen Herausforderungen.

This 50 mm lens in particular Riflescope in classic ZF design (the traditional appearance of the hunting rifle is retained) optimally fulfils the needs of hunters who want to preserve traditions and also seek technological superiority in difficult times such as tuberculosis or special official requirements.

For the ZF mounting, HIKMICRO relied on a Conventional 30 mm centre tube which can be easily mounted with standard ZF mounting rings and suitable eye relief.

Firing and adjusting the WB optical sight is even possible with just one shot using the still image.

The modern aiming optics software offers up to 5 zeroing profiles so that you can set the STELLAR SQ50 auf 5 verschiedenen Gewehren with standardised basic assembly.

Experienced hunters can determine which functionalities are actually useful in practice for the respective hunting use. Hunters then decide for yourself.

Visit and discover ALSO

Hikmicro Mobile App | Thermal Image

HIKMICRO WB target optics facts

640×512 px 12-Mikron Wärmebildsensor – unter 35 mk NETD-Empfindlichkeit

IP 67 protection class

Networked via the smartphone app

1024×768 OLED display Output surface

Detection up to 2600 m distance

Up to 5 weapons can be fired and stored

Operating instructions WB-ZF Apple Store Play Store

HIKMICRO STELLAR SQ50 Wärmebild Zielfernrohr | digitaler Weitblick und technologischer Fortschritt vernetzt | Details

The OLED display can be ordered in four different Colour modes are displayed: Black Hot, White Hot, Red Hot and Fusion.

If the Reverse Activation" function aktiviert, dann wird ein Video automatisch aufgezeichnet, sobald das ZF einen Schuß bzw. Rückstoß erkennt. Mit der Wi-Fi-Hotspot-Funktion kann man Dateien freigeben, das Bild live auf das Smartphone streamen, so aber auch die Firmware des Geräts aktualisieren.

Das Stellar SQ50 wird mit Two internal lithium batteries and an interchangeable CR123A Batterie geliefert. Diese Stromquellen reichen für eine 13 hours of useThis can be extended by replacing the CR123A battery when it is empty.

The complete optics & technology is supported by a Robust aluminium housing with IP67 protection standard protected, which means that the device can theoretically be submerged up to one metre under water for up to one minute.

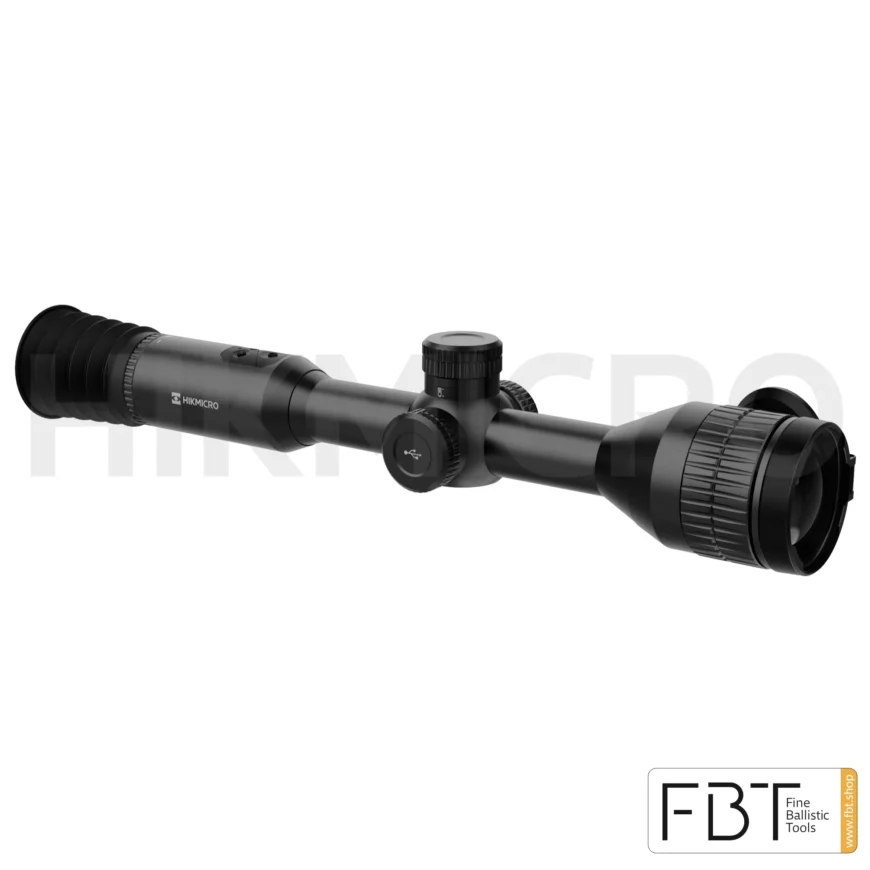

The USB-C port, which can be used to transfer data and charge the riflescope, is located under the cap, which traditionally houses the adjustment device for the image section. This also makes it easy to supply the Stellar with power via an external USB power bank.

Use the built-in Wi-Fi to connect to the HIKMICRO Sight app and stream, record and control the Stellar from your phone, tablet or other mobile device.

You can work in Stream in real time, to share your hunting experience with a friend. The app also gives you access to all the important controls such as colour palettes, magnification, brightness and contrast.

So können Sie das Stellar ganz einfach so konfigurieren, dass es am besten zu Ihnen passt. Das WB riflescope is specifically focussing on networked, modern and digital intelligence to provide hunting-relevant information at the touch of a button in the field of vision and mobile.

The HIKMICRO mission is to bring thermal products from the niche to the mass market

HIKMICRO is a leading provider of thermal imaging devices and solutions. Specialising in SoC and MEMS design, development and manufacturing, the company offers thermal detectors, cores, modules, cameras and total solutions for the global market, serving customers in more than 100 countries and regions.

HIKMICRO lays great importance to research and development, was den kontinuierlichen Fortschritt in der Thermotechnologie ermöglicht. HIKMICRO wird auch weiterhin professionelle Software- und Hardwareprodukte für seine wachsende Liste von Geschäftspartnern bereitstellen und gemeinsam an einer sichereren, intelligenteren und effizienteren Welt arbeiten.

30 mm tube for mounting

Keep it simple. Simply mount on the weapon with standard mounting.

Variable reticle

Flexible reticle design - can be stored for 5 weapons.

Recognise far and wide

Detection of a 1.7 m target at a distance of up to 2600 m.

To read - Considerations for the purchase of a thermal imaging riflescope

Choosing the right thermal imaging target device

Today's thermal imaging target devices are high-end precision devices of the latest design

They comprehensively fulfil the Needs of hunters and marksmenwhich place the highest demands on the performance of the target devices.

Dual-use devices:
These are used both for the Use by hand and as an attachment suitable for a day optic on a weapon. When used as attachments, they are attached to a target optic - usually the objective lens - using a clamping adapter. Clamping adapters are offered both by suppliers of thermal imaging optics themselves and by various manufacturers. Disadvantage: Clamping solutions can lead to aiming errors and thus to unintended animal suffering.

Thermal imaging target optics / night vision target optics:
These high-end devices are known as Independent aiming optics on the weapon are extremely precise and have their own internal reticle with many adjustment options.

Essential elements of a thermal imaging device

The essential elements of a thermal imaging optic include

1. the Objective lens (the size determines the amount of heat radiation, which enters the WB device and thus reaches the heat sensor)

2. the thermal image sensor / detector (determines the resolution via its temperature sensitivity, good formats are 640 x 480 pixels). Important here is the performance of less than 35 mk NETD sensitivity (thermal sensitivity of the sensor - the smaller, the better).

3. the quality of the OLED screen (affects the image display) - 1024×768 is a good standard today.

Legal regulations in the federal states

Thermal imaging optics / night vision optics are even classified as prohibited articles in various countries! Even possession is prohibited and punishable by law. Please observe the applicable legal situation in your country.

The bullet resistance of a WB optical sight

Whether a WB optic is sufficiently bulletproof is one of the most important criteria in the selection process - especially for powerful calibres.

When firing, considerable forces act on the WB riflescope. Riflescopes are described as bulletproofif they can withstand these forces without any changes to the housing, the mechanics or the reticle.

The high standard of good thermal imaging optics means that the Shot resistance of target optics guaranteed.

Just like this Just as important as the bullet resistance of WB riflescopes is the bullet resistance of mounts.
